1000KW SOLAR PROJECT FOR AMIT COT FIBER, MALKAPUR

Client: Amit Cot Fiber
Location: Survey No 124/1,2,3, Nandura Road, Near Hotel Surya, Malkapur, Maharashtra
Client’s Representative: Mr. Subhash Dwarkadas Chaudhari

Project Overview:

Amit Cot Fiber, located in Malkapur, Maharashtra, is a well-established industrial player in the textile industry. In line with their commitment to sustainability and energy efficiency, they decided to invest in solar energy to reduce operational costs and contribute to a cleaner environment. Chirayu Power Pvt. Ltd. proudly partnered with Amit Cot Fiber to deliver a 1000 kW solar solution, consisting of a 600 kW ground-mount project and a 400 kW rooftop project. This project stands as one of the largest solar solutions in Malkapur, marking a significant step towards the adoption of renewable energy.

Technical Specifications of the Solar Installation

1. Total Installed Capacity: 1000 kW Solar System

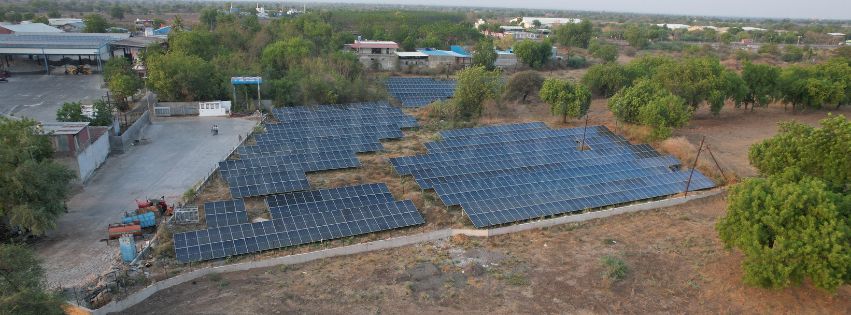

• • 600 kW Ground Mount System

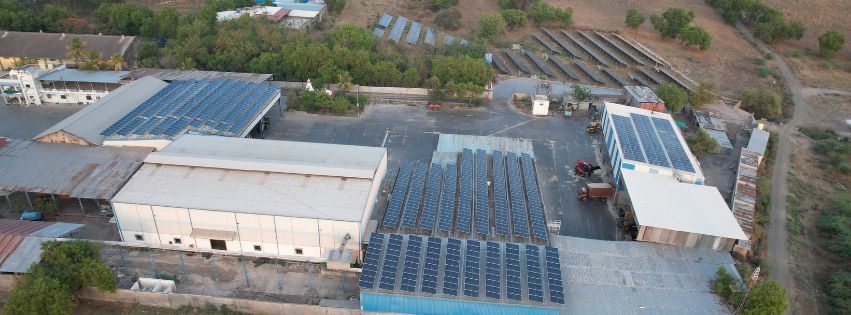

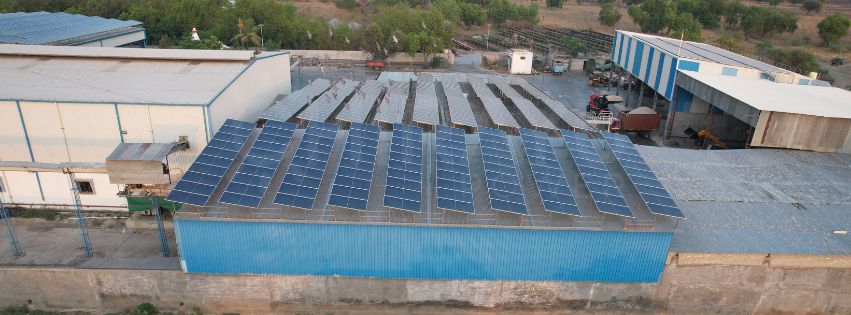

  • 400 kW Rooftop System

2. Panels (Solar Panels):

• • • Brand: Waaree (Tier 1 Brand)
    • Wattage: 545 Wp
    • Type: Mono + PERC + Half-Cut + Bi-Facial Panels
    • Technology: High-efficiency Mono + PERC for maximum energy generation
    • Total Number of Panels: 1835 Panels (600 kW ground mount + 400 kW rooftop)

3. Inverters (DC to AC Converter):

• • Brand: SolarEdge
  • Inverter Configuration: Multiple inverters, customized to the project’s requirements.
  • Power Optimizers: P1200 and S400
  • Efficiency: >97%

4. Mounting Structure:

• • • Ground Mount: Double-column structure for stable installation and long-lasting performance.
    • Roof Mount: Aluminum short rail structure for rooftop panels.
    • Wind Stability: 150 km/h to ensure stability in adverse weather conditions.

5. Walkway:

• • Material: Heavy case walkway installed for easy and safe maintenance access.

6. Railing Protection:

• • Type: Protective MS epoxy-coated railings to ensure safety for maintenance personnel on the rooftop.

7. Stairs:

• • Individual Stairs: Provided for each roof for safe access and maintenance.

8. Earthing Kit:

• • Standard: As per IEEE standards
  • Type: Pipe-in-pipe chemical earthing with discom-approved earthing powder
  • Multiple earthing systems are used to ensure safety and optimal performance.

9. Lightning Arrestor:

• • Type: ESE lightning arrestor with a 107m protection radius for enhanced protection.
  • Material: Copper arrestors for maximum lightning protection.

10. Cabling:

• • AC & DC Cables: TUV-certified cables with double PVC coating, zinc tinted, and pure copper for both AC and DC connections.

11. Monitoring System:

• • Module-level monitoring with SolarEdge optimizers for real-time performance tracking and optimization.

Key Features and Advantages

• Net Metering: The project is one of Malkapur's biggest net metering solar solutions, providing significant savings and efficient energy management for Amit Cot Fiber.
• First of Its Kind: This is the 1st industrial project in India to use Waaree’s 1 MW Solar Bi-Facial Panels, marking a significant milestone in solar technology adoption.
• Safety and Accessibility: Features such as FRP walkways, epoxy-coated railings, and individual stairs ensure both safety and ease of access for maintenance teams.
• Remote Monitoring: The system provides remote monitoring through SolarEdge’s module-level monitoring, ensuring optimal system performance and proactive issue resolution.

Expected Generation and Benefits of the Solar Project

The installation of 1000 kW solar system provides numerous benefits:

• Energy Cost Savings: The system will help Amit Cot Fiber reduce electricity costs significantly, leading to long-term financial savings.
• Environmental Sustainability: By shifting to solar energy, the company is significantly reducing its carbon footprint, contributing to global sustainability goals.
• Reliable Power Supply: The system ensures reliable, continuous power generation, optimizing energy use and reducing dependence on grid power.
• Carbon Footprint Offset: The 1000 kW solar system is equivalent to planting approximately 15,000 trees (1000 kW * 15 trees per 1 kW), making a positive impact on the environment.

Conclusion

The successful implementation of the 1000 kW solar system at Amit Cot Fiber is a significant step toward energy independence and sustainability for the company. The project utilized cutting-edge solar technology, including SolarEdge inverters and bi-facial panels, to deliver exceptional energy savings and environmental benefits.

Chirayu Power Pvt. Ltd. is proud to have partnered with Amit Cot Fiber on this milestone project, helping them reduce energy costs and contribute to a greener future.
