10KW Solar Grid Tied Electricity Solution for G.S College Swimming Pool khamgaon

Brief about the client: “G.S. College” is one of the best educational institute in Vidharba region of Maharashtra. It is NAAC accrediated   “A” grade college of Amravati University. We have already installed 40kw on the main building of the college and by the outstanding review the management decided to expand the system on swimming pool.

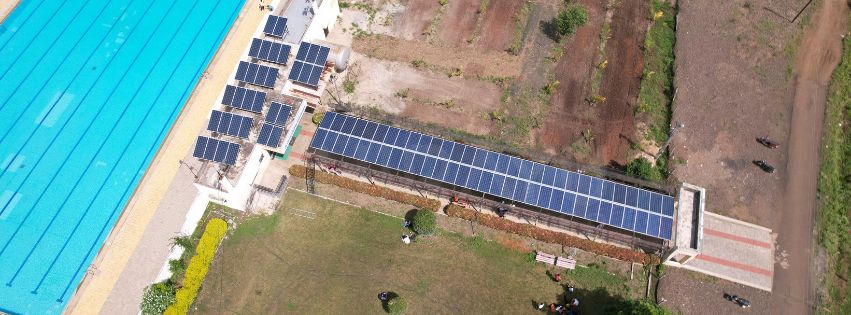

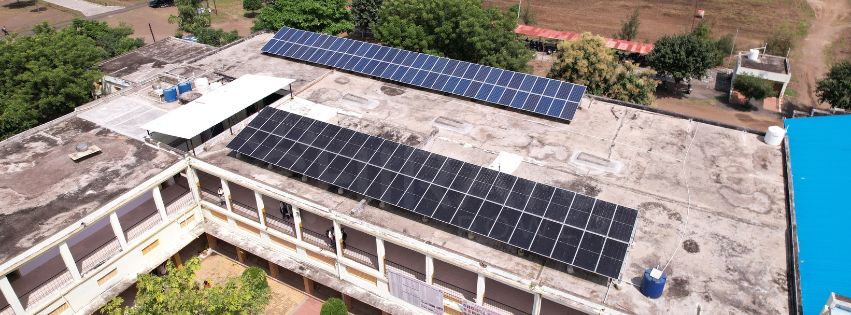

The client has a RCC roof on the swimming pool office. We have also effectively used the entrance area shed for installation of the system. This ultimately saves the space required for installation of the system.

Address of the client: G.S. College, Nandura Road, Khamgaon.

Client’s representative: Mr. Prashant Bobdey.

Date of Commissioning of the solar system: 04/09/2017

Solar system capacity: 10kw Solar Grid Tied system with net-meter

Solar PV Modules used: Waaree polycrystalline – 325Wp solar PV modules has been used for this solution.

Solar Inverter Technology: Polycab Chinese technology inverter is been used.

Our team also checks the health of the solar system once every week so that our client gets the best solar experience.

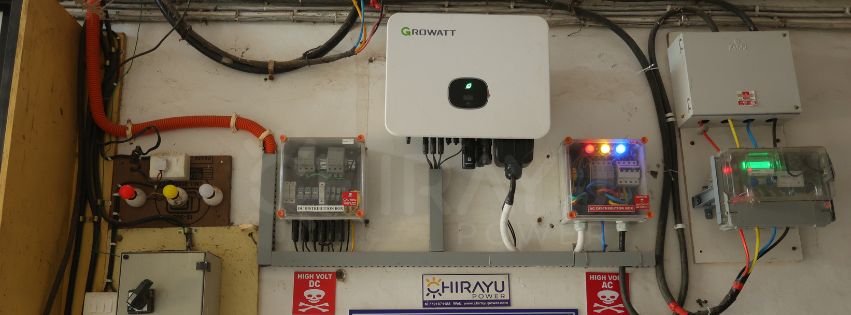

We have also provided AC and DC protections like SPD’s, fuses, DC MCB, AC MCB, MCCB, single phasing preventer, IP 68 polycarbonate boxes etc.

Solar Panel Mounting Structure: HDG structure for RCC roof is used for it as it is rust free structure and with high durability.

Earthing and Lighting arrestor: We have used a 50mm x 2-meter chemical earthing technology. Multiple earthing is used to get the best results.

For lighting arrestor, we have used Taiwan’s ESE lighting arrestor along with 2 pure copper lighting arrestors. The specialty of ESE arrestor is that it is an active type of lighting arrestor with a protection radius of 107 meters.

To connect the earthing to different electrical and electronic components, we have used hot-dip galvanized 25mm x 3mm earthing strip with 11000V insulators for thorough protection.

It’s been more than 3years now and the solar system is working fantastically. If someone wants to see any ideal educational solar solutions in Khamgaon, then this 10kw solar grid-tied system is the best option.

For further details about this solar solution and site visit, kindly contact our representative. We will be happy to show you around.
