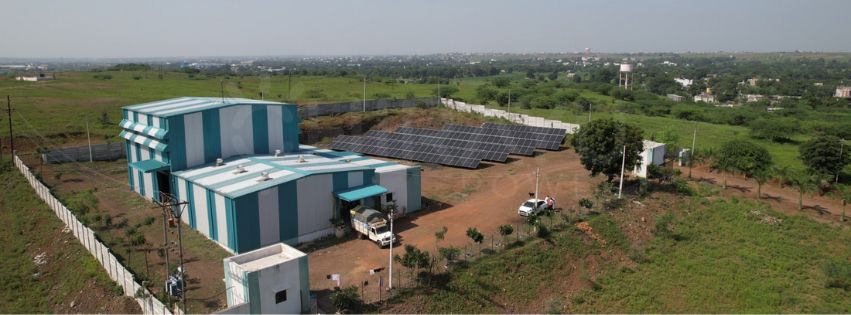

120 KW Solar Project for Brijganga Oxyrich Industries, Khamgoan
Client: Brijganga Oxyrich Industries
Location: Khamgaon, Maharashtra
Installed Capacity: 120 kW
Number of Panels Installed: 220 Panels
Director: Mr. Vaibhav Goenka
Project Overview:
Brijganga Oxyrich Industries, located in Khamgaon, Maharashtra, is a key player in the industrial sector. To reduce operational costs and promote sustainability, the company decided to invest in a solar energy solution. Chirayu Power Pvt. Ltd. was selected to deliver a 120 kW solar system, designed to meet the company’s significant energy demands while contributing to their environmental goals.
Technical Specifications of the Solar Installation
1. PV Modules (Solar Panels):
- Brand: Jinko (Tier 1 International Brand)
- Wattage: 545 Wp
- Type: Mono + PERC + Half Cut Cells
- Quality: Best International Quality
- Number of Panels Installed: 220 Panels
2. Inverters (DC to AC Converter):
- Brand: SolarEdge
- Warranty: 12 years
- Technology: IEC Approved, World’s No. 1 Technology
- Inverter Configuration: 100 kVA × 1 unit
3. Mounting Structure:

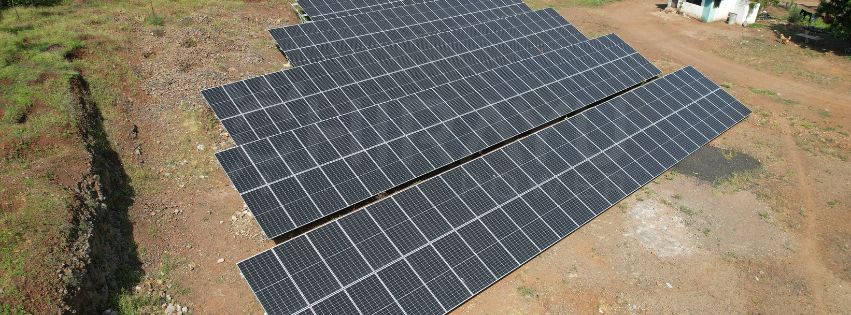

- Type: Ground-mounted galvanized structure with wind stability of 150 km/h
- Design: Optimized for solar panel installation with enhanced structural strength.
4. ACDB / DCDB:
- Protection: IP 65 Protected
- Components: 4P MCB, SPD, phase indicator, copper bus bar, CU wires with proper lugs, conduits, fuses, and phase breakers.
5. AC Combiner Box:
- Material: Heavy copper bus bar, phase indicator, powder-coated metal box, and proper lugs and conduits for safety and reliability.
6. Earthing Kit:
- Standard: As per IEEE standards
- Type: Pipe-in-pipe chemical earthing
- Quantity: 3 sets of 17mm x 3 meter pure copper bonded chemical rods with 25kg discom-approved earthing powder.
- Design: Customized and selected by Chirayu Power based on site conditions.
7. Lightning Arrestors:
- Type: CU Type LA with protection and proper earthing using hot dip galvanized strips and tested wires
- Additional Protection: ESE Lightning Arrestor with a 107m protection radius
- Quantity:
- 2 sets of CU Type LA (Made in India)
- 1 ESE Type Lightning Arrestor
8. Earthing Conductor:
- Material: HDG 25x3mm earthing strip or 50 sq.mm approved earthing cable for best results.
9. AC & DC Cables:
- DC Wire: TUV certified, I-Beam Technologies, double PVC coated, zinc tinted, pure copper wire
- AC Wire: 4-core, pure copper, industrial flexible wires with proper protection for underground applications.
- AC Cable for power transfer: Armored cable with weather protection and damage-proof coating with PVC pipes.
10. Monitoring:
- System Monitoring: MC-4 Connectors, Lan Cable, Lan Cable Connector, Cable Ties, and ABT Net Meter for import-export billing and CT operated generation meter for showing the system's generation.
Additional Features and Advantages:
- String Inverter: Best-in-class string inverter with SPV module-level monitoring for enhanced efficiency and reliability.
- Walkway: Hot dip galvanized walkway with 0-degree tilt (parallel to the ground) for proper maintenance and safety.
- Miscellaneous Safety Equipment: Includes a 5kg ABC class fire extinguisher, rubber mat (2x1m), first aid kit, toolbox, and box keys for safe operation and easy access to necessary tools.
Expected Generation and Benefits of the Solar Project
This solar installation at Brijganga Oxyrich Industries offers the following key benefits:
- Energy Cost Savings: Significant reduction in electricity expenses, ensuring long-term financial savings for the company.
- Environmental Sustainability: The transition to solar energy helps reduce the carbon footprint, contributing to global sustainability goals.
- Reliable Power Supply: The system ensures continuous and reliable power generation, improving operational efficiency and reducing reliance on grid power.
- Carbon Footprint Offset: This 120 kW solar system is equivalent to planting approximately 1,800 trees (120 kW * 15 trees per 1 kW), helping to offset the carbon footprint.
Conclusion
The successful installation of the 120 kW solar system at Brijganga Oxyrich Industries marks an important milestone in their journey toward energy independence and sustainability. Chirayu Power Pvt. Ltd. is proud to have partnered with Brijganga Oxyrich Industries to deliver a customized solar solution that not only meets their energy needs but also supports their environmental responsibility.
