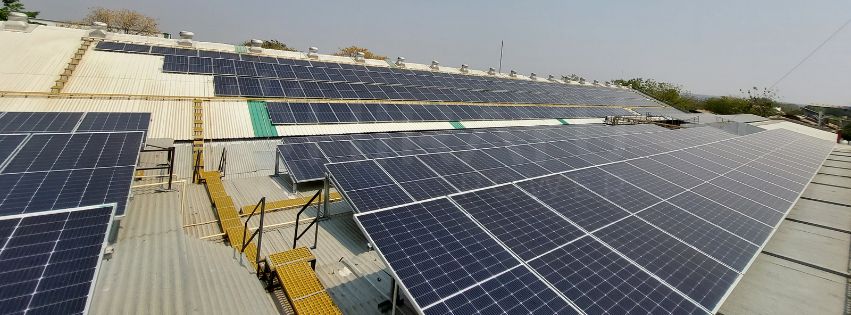

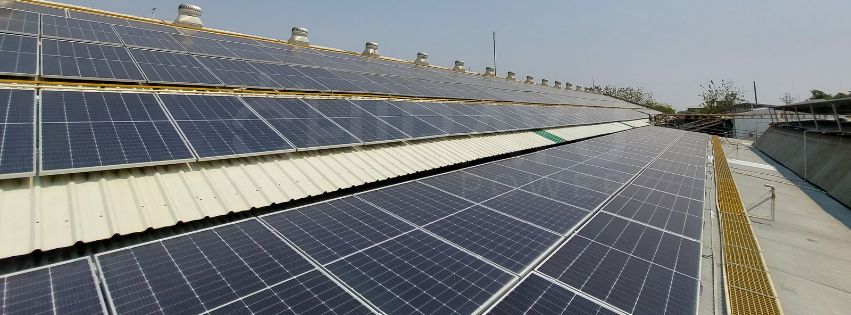

235 KW Solar Project for Vikamshi Fabrics Pvt. Ltd.

Client: Vikamshi Fabric Pvt. Ltd.
Location: Khamgaon, Maharashtra
Installed Capacity: 235 kW
Number of Panels Installed: 436 Panels
Director: Mr. Swar Vikamshi

Project Overview:

Vikamshi Fabric Pvt. Ltd., located in Khamgaon, Maharashtra, is a leading textile manufacturer. To optimize energy costs and promote sustainability, the company made a strategic decision to invest in a 235 kW solar power system. Chirayu Power Pvt. Ltd. was honored to partner with Vikamshi Fabric Pvt. Ltd. to implement a reliable and efficient solar solution. This installation is designed to meet the energy consumption needs of the company while aligning with their long-term sustainability goals.

Technical Specifications of the Solar Installation

1. PV Modules (Solar Panels):

• • Brand: WAAREE (Made in India, Tier 1 Brand)
  • Model: ARKA Series WSMD-540
  • Wattage: 540 Wp
  • Type: Mono + PERC + Half Cut Cells
  • Efficiency: 17.5%
  • Number of Panels Installed: 436 Panels
  • Warranty: 12 Years Product Warranty and 27 Years Performance Warranty

2. Inverters (DC to AC Converter):

• • Brand: SolarEdge
  • Type: On-grid Inverter
  • Inverter Configuration: 100 kVA × 2 units
  • Warranty: 12 Years
  • Technology: IEC Approved

3. Power Optimizers:

• • Brand: SolarEdge
  • Model: P1100 Optimizers
  • Quantity: 218 units (1 optimizer for 2 modules)
  • Warranty: 25 Years
  • Functionality: MPPT algorithm and booster mechanism for all modules.

4. Mounting Structure:

• • Material: Aluminum Short Rail Structure for south-tilted shade and Galvanized Structure for north-tilted shades.
  • Wind Stability: 150 km/h
  • Mounting Type: Roof Top Mounting

5. Walkway:

• • Material: FRP Walkway with 0° tilt (parallel to the ground) for safe access and maintenance.

6. Lightning Arrestors:

• • Type: CU Type LA with protection and proper earthing using hot-dip galvanized strips or tested wires and insulators.
  • Additional: ESE Lightning Arrestor with 107m protection radius.
  • Quantity: 2 sets of CU Type LA and 1 ESE Lightning Arrestor.

7. AC & DC Cables:

• • DC Wire: TUV certified, I-beam technologies, double PVC coated, zinc tinted, pure copper wire.
  • AC Cables:
    • 4-core, pure copper, industrial flexible wires with proper protection for underground applications.
    • Armored cables with weather protection and damage-proof coating with PVC pipes.

8. Electrification:

• • MC-4 Connectors: ELCOM/reputed make
  • Lan Cable, Lan Cable Connector, Cable Ties: Precisely selected by Chirayu Power
  • Net Metering: ABT Net Meter, Generation Meter for system generation.

9. ACDB / DCDB:

• • Protection: IP 65 protected DC/AC Protection Box
  • Components: 4P MCB, SPD, phase indicator, copper bus bar, CU wires with proper lugs, conduits, fuses, phase breakers.

Additional Features and Advantages:

• Best-in-Class String Inverter: Equipped with SPV module-level monitoring for optimal performance.
• Walkway: FRP Walkway with 0° tilt, ensuring safe and easy maintenance access.
• Miscellaneous: Includes a 5kg ABC class fire extinguisher, rubber mat (2x1m), first aid kit, toolbox, and box keys for safety and maintenance.

Expected Generation and Benefits of the Solar Project

The solar installation for Vikamshi Fabric Pvt. Ltd. provides the following key benefits:

• Energy Cost Savings: Significant reduction in electricity costs, providing long-term savings for the textile manufacturing facility.
• Environmental Sustainability: The transition to solar energy helps reduce the carbon footprint, supporting global sustainability initiatives.
• Reliable Power Supply: The solar system ensures uninterrupted power generation, boosting operational efficiency and reducing dependence on the grid.
• Carbon Footprint Offset: This 235 kW solar system is equivalent to planting approximately 3,525 trees (235 kW * 15 trees per 1 kW), making a positive contribution to the environment.

Conclusion

The successful implementation of this 235 kW solar system at Vikamshi Fabric Pvt. Ltd. is a significant step toward energy independence and sustainability. Chirayu Power Pvt. Ltd. is proud to have collaborated with Vikamshi Fabric Pvt. Ltd. to deliver an efficient and reliable solar solution that reduces energy costs while supporting environmental responsibility.
