27.3 KW SOLAR SOLUTION FOR SHIVAM MRI CENTRE IN JALGAON

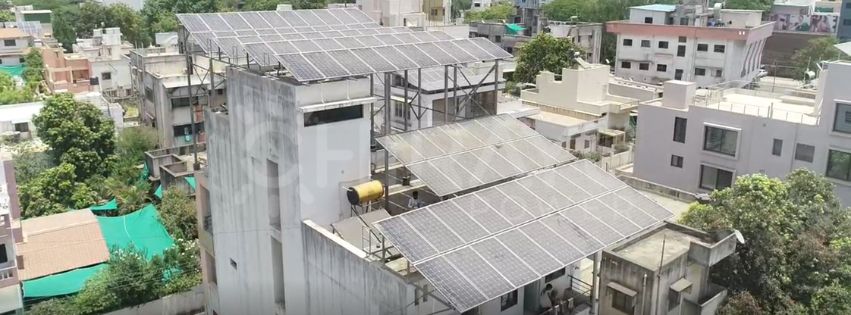

27.3KW ROOFTOP SOLAR SOLUTION FOR SHIVAM MRI CENTRE IN JALGAON

Client: Shivam MRI Centre
Project Capacity: 27.3 kW
Location: Jalgaon, Maharashtra
Director: Dr. Kiran C. Patil

Project Summary:

Shivam MRI Centre, a leading medical imaging facility in Jalgaon, Maharashtra, decided to reduce energy costs and transition to renewable energy by installing a 27.3 kW grid-tied solar solution. The installation is equipped with SolarEdge Power Boosters and has been customized by Chirayu Power Pvt. Ltd. to meet the energy requirements of the MRI centre while promoting sustainability. This system is designed to provide reliable and efficient energy, reducing the operational costs of the centre significantly.

Technical Specifications of the Solar Installation:

  • Project Capacity: 27.3 kWp
  • System Type: Grid-tied Solar Solution

Technical Details

1. PV Modules (Solar Panels):

    • Brand: WAAREE/Tier 1
    • Model: 350Wp
    • Type: Monocrystalline
    • Efficiency: 17.5%
    • Number of Panels Installed: 78 Panels

2. Power Optimizer:

    • Type: SolarEdge Power Optimizer
    • Configuration: 1 optimizer for 2 modules
    • Quantity: 39 units
    • Technology: MPPT algorithm and booster mechanism for all modules

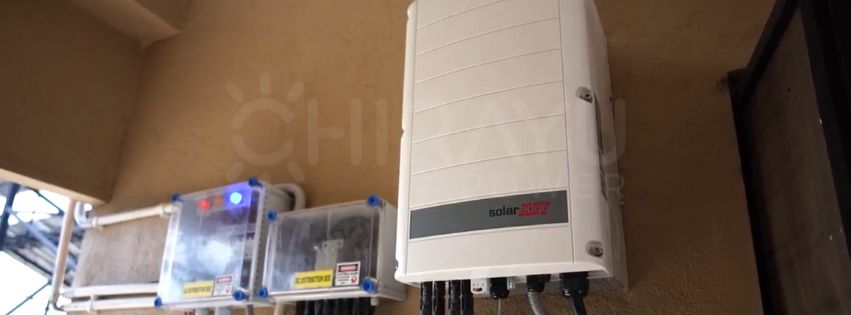

3. Inverter:

    • Brand: SolarEdge (Made in India, Customized by Chirayu Power)
    • Model: 27.6 kVA On-grid Inverter
    • Output: 415 V AC, 50Hz, 3-phase
    • Efficiency: >97%
    • Reputed Make: IEC Approved

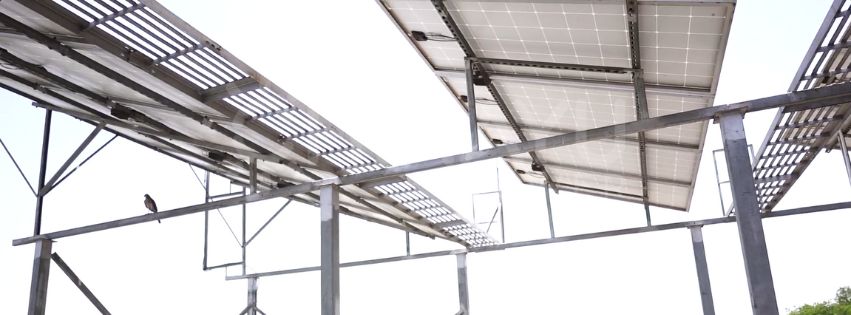

4. Mounting Structure:

    • Material: HDG (Hot-Dip Galvanized) Structure to support the panels
    • Quantity: 1 set
    • Engineered by: Chirayu Power

5. Junction Box (ACDB/DCDB):

    • Protection: IP 65 protected
    • Components: SPD, fuses, breakers, isolators, MCB, etc.
    • Material: Rust-proof structure
    • Engineered by: Chirayu Power

6. Earthing Kit:

    • Standard: As per IEEE standards
    • Type: Pipe in Pipe Chemical Earthing
    • Reputed Make: 2 existing earthing systems to be used

7. Lightning Arrestor:

    • Type: Reputed make, CU bonded
    • Quantity: 2 sets

8. AC & DC Cables:

    • AC & DC Wire: Poly Cable, Lapp Cable, RR Cable, KEI, Siechem, Advance
    • Design: Double PVC coated, zinc tinted, pure copper wire
    • Protection: Weatherproof and damage-proof coating and PVC pipes

Expected Generation and Benefits of the Solar Project:

The solar installation at Shivam MRI Centre provides several key benefits:

  • Energy Cost Savings: Significant reduction in electricity bills, helping the MRI centre achieve long-term savings.
  • Environmental Sustainability: Transitioning to solar energy helps the MRI centre reduce its carbon footprint, supporting global sustainability efforts.
  • Reliable Power Supply: The system ensures consistent power generation, improving operational efficiency and reducing dependency on grid power.
  • Carbon Footprint Offset: The 27.3 kW solar system at Shivam MRI Centre is equivalent to planting approximately 410 trees (27.3 kW * 15 trees per 1 kW), making a positive impact on the environment.

Additional Features and Advantages:

  • Best-in-Class String Inverter: Equipped with SPV module-level monitoring for enhanced efficiency.
  • Walkway: Hot dip galvanized walkway with 0-degree tilt (parallel to the ground) for proper maintenance.
  • Miscellaneous: Safety provisions include a fire extinguisher (5kg ABC class), rubber mat, first aid kit, toolbox, and box keys for safety and ease of maintenance.

Conclusion:

The successful installation of the 27.3 kW solar system at Shivam MRI Centre is a significant step in their journey towards energy independence and sustainability. Chirayu Power Pvt. Ltd. is proud to have partnered with Shivam MRI Centre to provide an efficient and reliable solar solution that reduces energy costs and contributes to environmental responsibility.
